Current output 1/5 of what Odrive measures

Support ODrive S1 Support
1

Odrive 3.6 56V, 36V supply driving Segway Ninebot motors. I’ve been setting up these motors for a couple months and thought I had the Odrive sorted. Started using it with Ardurover to drive my autonomous lawnmower, and have been unable to get enough torque to do pivot turns. Odrive says it is putting out 20A on each motor, which is the limit I set, and the Ardurover is measuring only 6-10A combined!! I verified the Ardurover 6-10 measurement with an external current meter.

vlcsnap-2024-06-26-21h25m45s332
vlcsnap-2024-06-26-21h25m45s3321920×1080 171 KB

Why is the Odrive over-measuring the output current???

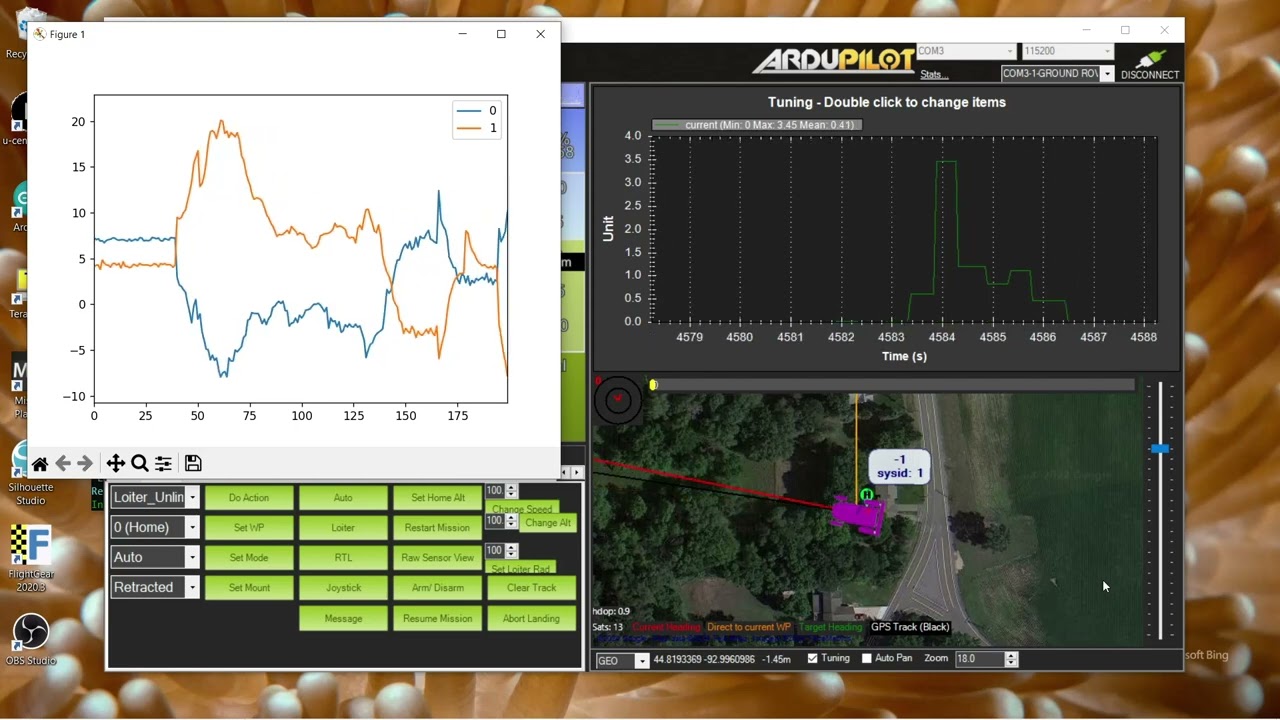

Here is the full screen capture of Odrive using command

start_liveplotter(lambda: [odrv0.axis0.motor.current_control.Iq_measured,  odrv0.axis1.motor.current_control.Iq_measured])

and the Tuning plot of current in Mission Planner:

Here is my config:

{
